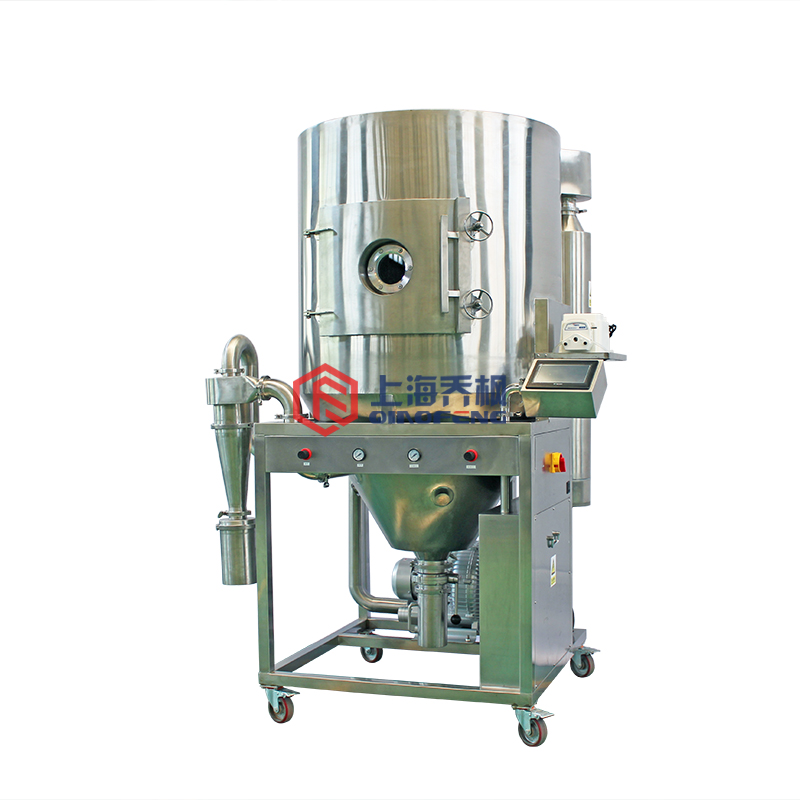

| Device name: | Spray granulation dryer |
| Equipment type: | qfn - zl - 5 |
| Equipment specifications: | 5Kg/h (support customized) |
| Test machine: | Support test making experiment |
| Scope of application: | All kinds of pellets and pellets, etc. |
| Application scenario: | Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc. |
| Is it guaranteed? | National three year warranty |
| Telephone: | 17317246351 |
1. Product Overview:
Granulating spray dryer is a set of granulating spray dryer developed by Qiao Feng, Shanghai. QFN-ZL series of granulation spray dryer (Qiao Feng exclusive) special double liquid feeding pelletizing nozzle and a great innovation in domestic, will direct the uniform uniform spherical droplets by heat into particles.
It can be used in experiments and small-scale production. The pellets have good accuracy and even grains. Because the device is small in size, it can be installed in an ordinary laboratory. All the core accessories are imported equipment, and other accessories are manufactured by well-known manufacturers in China to ensure the stability and safety of the products.
2. product features:
3. equipment configuration
|
system |
number |
parts |
brand |
Model |
Number |
Remarks |
|
electric |
One |
Electronic control system of QFN-ZL series atomizing dryer |
Maple Maple |
/ |
1 sets |
See device parameters |
|
Two |
Switching Mode Power Supply |
The Ming and Wei |
you - 100 - 24 |
The 1 |
/ |
|
|
Three |
Air switch |
chint |
DZ47 series |
Some |
/ |
|
|
Four |
Small relay |
chint |
JZX-22F (D) /2Z |
Some |
/ |
|
|
JZX-22F (D) /4Z |
||||||
|
Five |
Solid state relay |
/ |
/ |
1 sets |
See device parameters |
|
|
Six |
Frequency converter |
/ |
/ |
1 sets |
See device parameters |
|
|
Seven |
Digital controller |
Taida |
DTC-1000 series |
Some |
/ |
|
|
Eight |
Power switch |
|
|
The 1 |
|
|
|
Nine |
Indicator light |
chint |
nd16 - 22ds / 4 |
The 1 |
Red, 220VAC |
|
|
Ten |
sensor |
Famous Shanghai |
wzp - 241 |
3 roots |
/ |
|
|
Eleven |
Terminal terminal |
/ |
/ |
Some |
/ |
|
|
Twelve |
Guide |
/ |
/ |
Some |
/ |
|
|
Thirteen |
Groove |
/ |
/ |
Some |
Bottom hole |
|
|
Fourteen |
wire |
Sails |
/ |
/ |
/ |
|
|
Fifteen |
Electric box |
Maple Maple |
Customized |
The 1 |
sus304 |
|
|
transport |
One |
Peristaltic pump |
Hui Yu |
yz15 13a |
1 sets |
/ |
|
Two |
Feed pipe |
/ |
|
/ |
/ |
|
|
Fog |
One |
Atomization system |
Maple Maple |
Customized |
1 sets |
See device parameters |
|
Two |
Pressure gauge |
AirTAC |
0-1MPA |
|
/ |
|
|
Three |
Circulating pump |
/ |
/ |
One |
/ |
|
|
Three |
Air compressor |
Dolphin |
0-0.8MPA |
1 sets |
/ |
|
|
dry |
One |
Dry pagoda |
Maple Maple |
/ |
The 1 |
See device parameters |
|
Two |
Hot air distributor and volute (matching of atomization system) |
Maple Maple |
Customized |
The 1 |
Three hundred and four |
|
|
yield |
One |
cyclone |
Maple Maple |
Customized |
One |
Three hundred and four |
|
Two |
Dust collector (optional) |
Maple Maple |
Customized |
/ |
See device parameters |
|
|
Three |
Collecting bucket |
Maple Maple |
Customized |
Three |
Three hundred and four |
|
|
Four |
Feed valve |
Warm letter |
φ63 / 108mm |
Three |
Health level 304 |
|
|
Hot air circulation system |
One |
Fan |
/ |
/ |
1 sets |
See device parameters |
|
Two |
heater |
Maple Maple |
Customized |
|
See device parameters |
4. device parameters
|
Granulating spray dryer (the original 9021 sections) |
qfn - zl-Five |
qfn - zl-Ten |
qfn - zl-Fifteen |
|
Water evaporation |
5Kg/h |
10Kg/h |
15Kg/h |
|
Minimum feed volume |
80ml |
120ml |
150ml |
|
The diameter of the drying chamber (mm) |
￠1000 |
￠1200 |
￠1400 |
|
Height of dry tower (mm) |
￠1000 |
￠1200 |
￠1500 |
|
Atomization system |
Double gas delivery (QFN-ZL-NZW3VER2018-1A) |
||
|
Electronic control system |
Qiao Feng granulation atomization system only (QFN-ZL-ES-VER2018-1A) |
||
|
Maximum inlet temperature (centigrade) |
Two hundred and sixty |
||
|
Standard of main electrical accessories (including PLC, analog module, touch screen) (optional) |
Control module (standard), delta control module, SIEMENS control module, Germany. |
||
|
Standard of electrical auxiliary accessories selection (including Contactors) (optional) |
CHINT (standard): Deli, Schneider. |
||
|
Contact with the material (optional) |
?sus304 (標準) □sus316 □其他 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ |
||
|
Exhaust reutilization, energy saving over 30% (optional) |
Assembly (standard) / assembly |
||
|
Atomizing nozzle (using diamond coating) |
(SUS304) (standard) SUS316 (standard) silicon carbide (standard) diamond |
||
|
Equipment warranty |
1 years (standard, above must be charged a certain maintenance cost) for 2 years, 3 years. |
||
|
Heater capacity |
25kw |
30kw |
35kw |
|
Air blower [power (kw), air volume (m /min)] |
nothing |
[0.25,9.5] |
[0.25,9.5] |
|
Draft fan [power (kw), air volume (m /h)] |
[1.5，250] |
[2.2，300] |
[2.2，1410] |
|
Compressor [power (kw), air volume (L /min)] |
[0.58，108] |
[1.5，250] |
[1.5，250] |
|
Electric power (installed capacity) |
30kw |
35kw |
45kw |
|
Thermal insulation material |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
50mm glass fiber insulated cotton |
|
Pulse bag dust collector (optional) |
Polytetrafluoroethylene film mulching material |
||
|
9 |
12 |
21 |
|
|
Shape size (mm) (L x W x H) (Reference) |
1600×1400×1800 |
2200×1600×2200 |
2600×1200×2500 |
|
Installation weight (Reference) |
500 kg |
1000kg |
1500kg |
|
Power supply |
380V/-3: it can be customized according to different national standards. |
Note 1: water evaporation at inlet temperature of 250 C.
2: for more evaporation equipment, please inquire online or call our company.
Tel: 17317246351
Mailbox: sales@qfn17.com
URL: http://www.kailongwood.cn
Address: Shanghai fengxian canal north road no. 1185
